Rammed Earth House in Maun_Botswana

These  photos are from the construction process of a rammed earth house built in Maun, Botswana, by Arch. Paul Marais, researcher from the University of Wales Institute Cardiff in association with the Centre for Alternative Technology in Wales on the study of sustainable technology in southern Africa.

Using soil escavated from the site as well as additional soil from aprox. 80km away (to improve structural aspects but also the aesthetics) this is a beatifully simple but significant example of earth construction as a resilient and universal material / technology.

Ramming the earth was done by hand inside plywood forms, which were reused after ramming for the roof structure.

The earth walls turned out fantastic, and the building respond nice and cool specially in the 35+ tough temperatures common in Maun.



" Buildings are energy and they use energy in their daily use. Sustainable Design looks at optimising energy use and harnessing the energy that arrives daily. Buildings have a certain amount of energy used in the process of building them and then they require energy for coolth and warmth, light and dark and suppling water and removing waste.

The energy that goes into building the building, creating it's materials, feeding the artisans and getting it all to the building site, we call the embodied energy.

This is tricky to measure exactly as you can imagine (how much oil and petrol and farmers braai went into that peanut butter that mainly produced a sleepy constructor?) so we use generalised measures and common sense . We know that materials found on site have a low embodied energy so we use natural materials sourced on site where possible. We must also consider the energy use during the buildings lifetime.

This may seem insignificant at first (what's a few heaters compared to ton's of coal used to make concrete) but it can be higher than the embodied energy as it will be over a very long period.

Buildings can be orientated to use the sun's energy for heating and cooling electricity generation and to reduce water and waste energy needs. Another form of energy that we consider in sustainable design is the energy of the occupants of the building.

People have strong cultural and social links to the physical space that they inhabit - sustainable design investigates their needs, wants and desires, creating solutions that fit!"

Paul Marais

.

The Mud Masjid in Mali

Património Arquitectónico em terra crua_Região de l'Isère_França

Património Arquitectónico em terra crua da Região de Isère, em França.
Earthen Architectural Heritage from Isère, France.

Direitos das fotos
Photo Copyrights : Inés Hau Spinosa

Aplicação de Btc´s_Tabiques | Paredes Interiores_Pavimentos

Fonte das fotos: Franz Volhard http://www.schauer-volhard.de

Mopti_Mali_Yann Arthus Bertrand

Vila nas margens do rio Níger, região de Mopti, Mali.
Photo Credits © Yann Arthus-Bertrand

Mud Hall_Harvard

Photo Credits: Iwan Baan

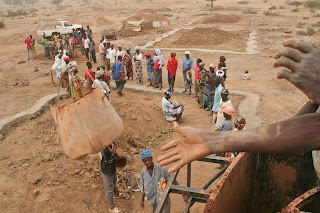

Secondary school_Gando_Burkina Faso_Francis Kere

Secondary school in Gando with passive ventilation system in Ouagadougou, Burkina Faso by Francis Kere Architecture

'Architect Frances Kere has been building really interesting schools in Burkina Faso for some time. Now he has used rammed earth in one of them, in a creative way.

This school project in one of the world’s poorest countries aims to provide further education to the inhabitants of a rural area. Gando, with a population of 3000, has no secondary education facilities and lies on the southern plains of Burkina Faso, some 200km from the capital Ouagadougou. Diverse design aspects of the project consider the challenging weather conditions where summer temperatures peak at 40°C.

The natural ventilation cooling effect is enhanced by routing air through underground tubes, planting vegetation, and the use of double-skin roofs and façades to achieve a 5°C thermal reduction. The enhanced indoor comfort and conditions are far more conducive to education.

Energy consumption during construction and operation is reduced to a minimum using only the sun and wind. The collection of scarce rainwater is integrated into the planting concept and is used to irrigate newly-planted trees that are intended to help consolidate previously exploited vegetation.'

Article photos and credits source: Francis Kere Architecture

Escola secundária em Gando com sistema de ventilação passiva em Ouagadougou, Burkina Faso por Francis Kere

'O Arquitecto Francis Kere tem vindo há já algum tempo a desenvolver projectos e  a construir escolas muito interessantes no Burkina Faso. Neste projecto em particular explora uma vez mais de forma criativa a técnica da taipa.

Num dos países mais pobres do mundo esta escola tem como objetivo garantir serviços educativos complementares aos habitantes de Gando, uma área rural das planícies do sul do Burkina Faso, a cerca de 200 quilómetros da capital Uagadugu, com uma população de 3000 pessoas e sem instalações de ensino secundário.

As condições meteorológicas adversas na região, onde as temperaturas de Verão atingem máximos de 40°C, foram consideradas durante a concepção do projecto.
Por exemplo, o efeito de arrefecimento natural é garantido por um sistema de ventilação que encaminha o ar através de tubos subterrâneos. Este é ainda garantido pela plantação de vegetação e pela utilização de fachadas e coberturas duplas com uma redução média de 5°C.

Por outro lado o consumo de energia durante a construção e utilização  dos edifícios é reduzido ao mínimo utilizando apenas a energia natural do sol e do vento. A recolha de água das chuvas ainda que escassas é integrada no conceito sustentável de plantação e é utilizado para irrigar as árvores recém-plantadas que se destinam a colaborar na consolidação da vegetação anteriormente integrada.'

Créditos das fotografias e texto: Francis Kere Architecture

Arquitectura y Construcción en Tierra: Técnicas Contemporáneas

Arquitectura y Construcción en Tierra: Técnicas Contemporáneas

from Fundación Jofré on Vimeo.

Construcción de las oficinas del Centro de Ecología Aplicada en Principe de Gales 6465, comuna de La Reina, en Santiago de Chile.

Edificio de tierra construido con técnicas contemporáneas de tapial reforzado con dispersores sísmicos, tierra alivianada, quincha metálica y adobe en arcillas de colores.

Arquitecto y constructor: Marcelo Cortes

2010 - 2011

CEA offices building process, Santiago, Chile

Earthen construction build with contemporary technics: metallic wattle and daub, earth and straw, rammed earth with seismic scatters, light earth and adobe.

Constructor and architect: Marcelo Cortes

2010 - 2011

The Book of Sand_ El libro de Arena_Jorge Luis Borges

"Nada é construído em pedra; tudo se constroi em areia, mas temos de construir como se a areia fosse pedra"
Jorge-Luis Borges

Habitação em taipa_OAPIX

Habitação em taipa, Corte da Velha, Mértola, 1955

http://www.oapix.org.pt

Construção em taipa_OAPIX

Construção em taipa, Ferreira do Alentejo, Alfundão, 1955
http://www.oapix.org.pt/100000/1/163,01,7/index.htm

Construção em taipa_Equador

Construção em taipa, Equador  ©Paul de Neyer 1995

A Construção com Terra no Contexto do Desenvolvimento Social Moçambicano e Português _CRSEEL2012

Será já na próxima 5ª feira, dia 26 de Abril, que o Arq. Miguel Mendes apresentará a comunicação: “A Construção com Terra no Contexto do Desenvolvimento Social Moçambicano e Português”.

Esta apresentação faz parte integrante do programa da 2ª Edição da Conferência Construçãoe Reabilitação Sustentável de Edifícios no Espaço Lusófono CRSEEL2012, a decorrer na Faculdade de Ciências e Tecnologia da Univ. Nova de Lisboa no Monte da Caparica, nos dias 26 e 27 Abril 2012.

Num contexto em que a necessidade de construção e reabilitação dopatrimónio é entendida como estratégica para o processo de desenvolvimento das sociedades, a 2ª Edição da Conferência Construção e Reabilitação Sustentável de Edifícios no Espaço Lusófono (CRSEEL 2012) delimitada no quadro dos países da lusofonia, surge como uma resposta ao crescente interesse que o tema tem vindo assumir nas economias de todo o espaço Lusófono.

A CRSEEL 2012 é uma Organização do Departamento de Engenharia Civil daFCT UNL, no quadro do Curso de Pós-Graduação em Construção Sustentável, e da Direcção-Geral do Ambiente do MAHOT de Cabo Verde

O debate das temáticas da Construção e Reabilitação Sustentável deEdifícios, com relevância para o contributo dos jovens investigadores, para aação dos Projetistas e Empresas, torna-se, pois, como um vetor determinante para o alavancar de ações que conduzam a um maior reforço do conhecimento e dacooperação entre os diferentes atores do processo da formação e da reabilitaçãodo património.

A Conferência contará com a presença de especialistas convidados dos diferentes países que compõem o Espaço Lusófono e importantes especialistas doprojeto e da construção. Estes especialistas irão reunir um conjunto decomunicações com diferentes pontos de vista, relacionados com a investigação, o projeto e a prática da realização.

A conferência nesta sua 2ª Edição contará com a intervenção da Senhora Ministra do Ambiente, Habitação e Ordenamento do Território de Cabo Verde, do Senhor Ministro do Urbanismo e Construção de Angola, do Senhor Ministro do Ambiente e Obras Públicas de São Tomé e Príncipe e do Presidente da Empresa de Obras Públicas do Estado do Rio de Janeiro, Brasil.

Saiba aqui mais informações.

Earth Sculptures_Alderney Stones_UK

A new site-specific installation of works by Andy Goldsworthy opened on the island of Alderney, located in the Bailiwick of Guernsey in the English Channel Islands. Alderney Stones consists of an installation of 11 boulders spread across the landscape of Alderney.

Goldsworthy formed each 3-ton boulder from a mold of rammed earth and other materials sourced from the island, such as berries, seeds, old tools and discarded gloves.Set in varying degrees of exposure to the elements, the stones will eventually erode, revealing the elements concealed inside, and ultimately return to the land from which they came.

© Andy Goldsworthy

Earth USA 2011_Announcement / Call for Papers

Announcing Earth USA 2011
September 30, October 1 and 2, 2011 - Albuquerque, New Mexico
This is the Sixth International Earthbuilding Conference sponsored by Earth USA (emerging from the Adobe Association of the Southwest), the Adobe Construction Program of Northern New Mexico College, the National Hispanic Cultural Center and Adobe in Action.
Earth USA 2011 indicates a wider field of interest than previous conferences and will include adobe, rammed earth, compressed earth block: CEB, and monolithic adobe: cob. Any material or method that uses clay as a binder is considered.
Call for Papers Schedule:
May 3, 2011:Abstracts due (one page using the abstract template, 8-1/2 x 11 or A4 formats, max. 250 words)
June 3, 2011:Acceptance notifications
August 5, 2011:Full paper due (7-page maximum including graphics, see formatting instructions on website)
Presenters will have 20 minutes for presentation and 10 minutes to answer questions. Time limits will be carefully monitored.
Paper subject categories are:
1. Historic buildings and cities including their stabilization, preservation and conservation
2. Education and information transfer including codes, norms and regulations
3. Physical and thermal properties of materials and structures including seismic, flood and storm resistance
4. Construction methods
5. New architecture and construction projects including renovation, modernization and re-purposing of existing buildings
6. Poster session
Submit your abstract as an e-mail attachment in .DOC format no later than May 3, 2011.
Please address your e-mail to:
Quentin Wilson, Speakers Committee
earthusa.org@gmail.com
For more information and to download the abstract template visit:http://www.earthusa.org/

Please click on the following link if you would like to stop receiving messages from Earth USA:http://earthusa.cmail2.com/t/y/u/fiiukd/pdulyhuik/

CURSO ARQUITECTURASdeTERRA_MAIO 2011

CURSO Arquitecturas de Terra * últimas inscrições!!!
23 horas / 02, 04, 06, 07, 10, 12 e 14 de Maio / Dias úteis, das 19h00 às 22h00, e Sábados, das 10h00 às 14h00 / 200 €

Todos os valores isentos de IVA, ao abrigo do n.º 14 do artigo 9.º do CIVA.

* Esta actividade formativa foi validada pela Ordem dos Arquitectos e permite a obtenção de créditos para efeitos da formação obrigatória em temáticas opcionais, complementar ao estágio profissional.

Para + informações e inscrições por favor contactem:

ARQCOOP - Cooperativa para a Inserção Profissional em Arquitectura, CRL Rua João Nascimento Costa, Lote 7 1900-269 Lisboa

Telf: 210107840

Fax: 210107841

arqcoop@gmail.com

http://www.arqcoop.com/

Colóquio internacio​nal em Marselha, França: 4-6 Maio 2011

No âmbito do projecto de investigação europeu Terra (In)cognita - Arquitectura de Terra na Europa (http://culture-terra-incognita.org/), co-organizado pela Escola Superior Gallaecia, segue informação sobre o colóquio internacional que se realizará em Marselha, França, dos dias 4 a 6 de Maio 2011. Informação disponível em Francês e Inglês.
No dia 6 de Maio de 2011, inicia-se a rede Europeia de arquitectura de terra, que contará com a presença de representantes, de pelo menos 15 países Europeus.
A organização convida todos os interessados a participar.

Para mais informações sobre este colóquio internacional, consultem o website do TERRA (IN)COGNITA

THE SYMPOSIUM :

It is organised by the Ecole d'Avignon (France), in partnership with the Escola Superior Gallaecia (Portugal), the University of Valencia (Spain), the University of Florence (Italy) and the Adviser in Architecture, Urban planning and environment (CAUE) of Vaucluse (France), in the framework of the European project Terra Incognita. Earthen architecture in Europe (Culture Programme 2007-2013), and by ICOMOS France, in the framework of its international technical conferences.

It receives the assistance of the Research Laboratory of Historical Monuments (LRMH) and the collaboration of the Confederation of artisans and small companies in the building trade (CAPEB).

The steering committee of this symposium was created within the workgroup "Trades people/Earth construction" of Icomos France.

The first day (May 4th) will be dedicated to the results of the Terra Incognita project: European cartography of the earthen architecture and identified European professionals involved in the field. It will be the occasion for these persons to testify of their reflection, their researches and their realizations in the field of earthen construction and earthen heritage preservation. Twelve countries of the European Union will be represented in a homogeneous way. They cover the Scandinavian territories, Central and Eastern Europe, Western Europe and the Mediterranean area.

The second day (May 5th) will be dedicated to the preservation of the earthen architectural heritage in France: techniques, innovative technologies, fields of research, know-how and professionals involved in the field. It will also show international initiatives which feed debates and reflections on the practices and the national approaches. It will be introduced by John Hurd, President of the International Scientific Committee "Earthen Architectural Heritage" of ICOMOS. It will gather nearly 20 French professionals concerned by the preservation of the earthen architectural heritage: from the researcher to the practitioner.

The third day (May 6th) will be dedicated to the launch of an European network of professionals and institutions involved in the earthen construction field; define the status, the objectives, the means, the missions (on registration, within the limits of the available places).

AROUND THE SYMPOSIUM:

.Wednesday, May 4th, late pm (6.00 – 7.30) : inaugural evening chaired by John Hurd, ISCEAH/ICOMOS

.Presentation and delivery of the Label 2011 "Outstanding earthen architecture in Europe".

.Presentation of the final publication of the project Terra Incognita.

.Presentation of the didactic exhibition « TERRA EUROPA. Earthen architecture in the European Union ».

.Presentation of the photographic exhibition « Terre en vues. Le regard d'un photographe sur l'architecture de terre » (Pierre Buch, photographer).

.Reception/Cocktail.

REGISTRATION CONDITIONS:

Registration fees are supported by the organizers.

The contribution to costs of meal (60 € VAT included) is compulsory and will validate your registration to the symposium.

Deadline for registration: 22 April 2011

Programme of the symposium

Registration form

List of accommodations near the Hotel of Region

Access to the Hotel of the Region

We suggest you acquiring the publications which will be presented within the framework of the symposium by downloading the order form here

Rammed Earth in Panyaden School_Tailand

How Rammed Earth Buildings Can Save Energy

By Markus Roselieb

Rammed earth is ideal for hot and dry climates because of its great capacity to store heat. Therefore it is perfect for Chiang Mai during the dry season where we have hot days and cool nights. The heat gets absorbed by the rammed earth walls during the day and is released into the surroundings during the night. In this way, it balances out the temperature of the surrounding area.

In the case of a high moisture content in the environment, rammed earth is very suitable as it has good moisture absorption. The humidity content of the earth when it is dried out is very low. The earth can absorb up to 30 times more water than concrete which means that in the long and heavy rainy season, the rammed earth walls will absorb the moisture of the environment, and balance out the moisture content, providing a mold- and fungus-free space.

Comparing Thermal Performance

The table below compares the thermal performance of classrooms built with two different types of walls.

Source: Earth Architecture in Western China

Red curve = indoor temperature in a rammed earth classroom (like those in Panyaden)

Yellow curve = indoor temperature in a conventional brick and concrete-based classroom

Blue curve = outdoor temperature

It is obvious from the study above that the indoor temperature of the earth classroom is always stable. In summer, it swings only between 21oC and 24oC. In winter, without any energy consumption for heating, it can reach an acceptable indoor comfort.

If you touch earth, concrete, steel and asphalt that are exposed to the sun, you will find that the different materials have different temperatures. The metal will be by far the hottest, followed by asphalt, then concrete (both are still so hot that you cannot walk barefoot on them for more than a few minutes). The earth will, however, be cool.

A concrete building is like an oven in which an air-conditioned interior space is inevitable. On the other hand, rammed earth has an excellent thermal mass because of its high density, and the high specific heat capacity of the soils used in its construction. It can store the heat during the day and release it slowly into the surroundings during the night. This energy-saving feature is one reason why we built our classrooms with this technique.

Fonte: http://www.panyaden.org/blog/conserving-energy/

Arq_Terra_Casa Sanitas_Colorado_USA

Projectada pelo Pyatt Studio, a "Casa Sanitas", em fase de construção, apresenta-se como a primeira habitação a ser construída em "insulated rammed earth" na cidade de Boulder, Colorado, USA.

Fonte das imagens : http://www.pyattstudio.com/
